The Concept represents ESATEC in Qatar, Bahrain and Saudi Arabia: carton tray forming, in-line paper e-commerce mailer production and large-format corrugated joining, specified, installed and supported for GCC converters and packaging producers.
ESATEC designs and manufactures packaging machinery in Puymoyen, France. The company has 36 years of expertise, more than 275 customers worldwide and more than 640 machines installed, all manufactured in France.
Every project runs from mechanical, electrical and automation design through assembly and factory testing to installation, commissioning, operator training, spare parts and maintenance. The Concept represents ESATEC in Qatar, Bahrain and Saudi Arabia and manages each project locally.
Beyond the three machines on this page, ESATEC builds window patching, pick-and-place card affixing, bottle cartoning and vinyl record packaging machines, as well as tailored lines with integrated robots. The Concept can scope any ESATEC machine for projects in the region.
Designed, machined, assembled and tested by ESATEC in France before shipment.
Brushless servo feeders and pushers on the FB 1000; independent servo-driven vacuum streams on the JOINER 500.
Adjustable forming towers, motorised width adjustment and touchscreens that store every production setting for reuse.
Touch control panels connect remotely for service and software updates.
Installation, commissioning, operator training, spare parts and maintenance, coordinated by The Concept.
Three machines for three packaging formats: carton food and produce trays, paper e-commerce mailers and large corrugated cases.

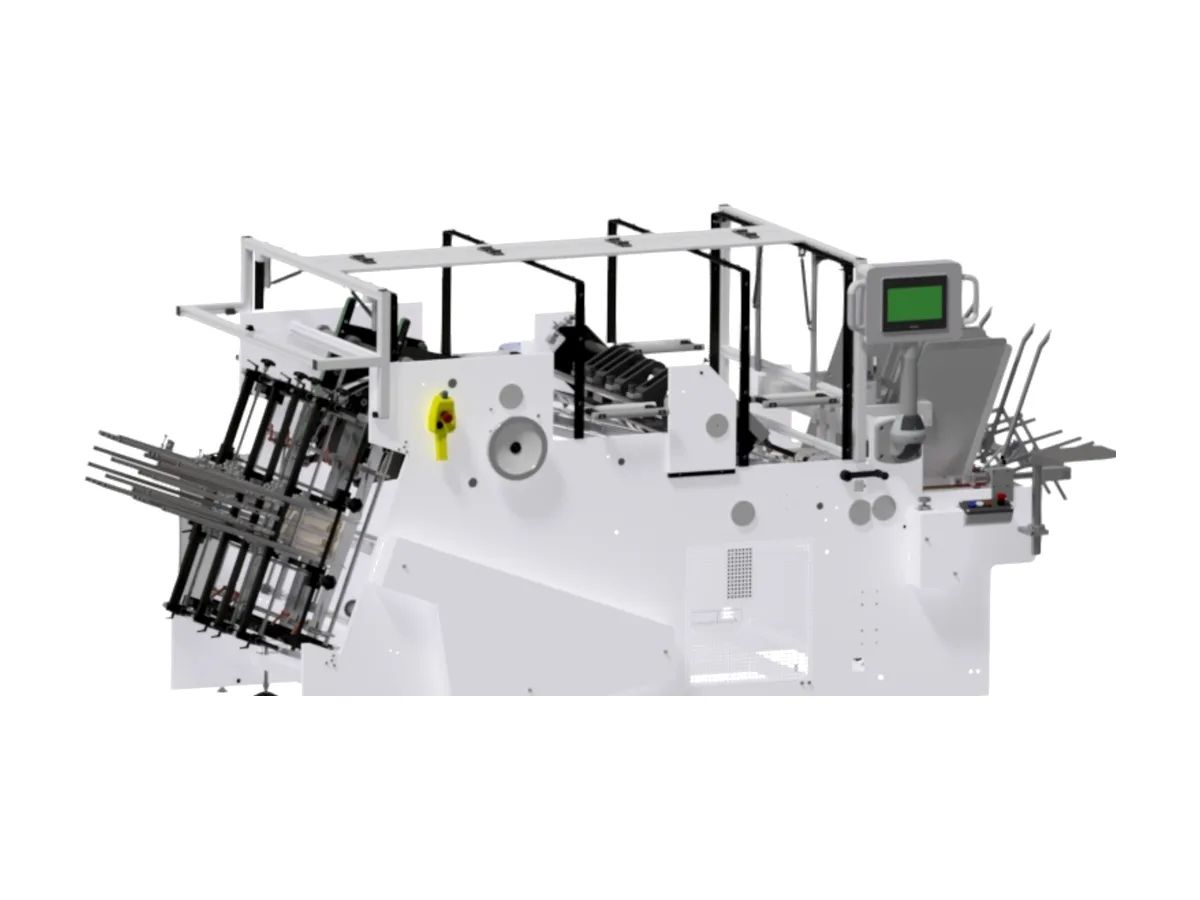

Forms and glues carton board and micro-flute trays: chip scoops, clamshells, take-away trays, trays with lids and vegetable trays.

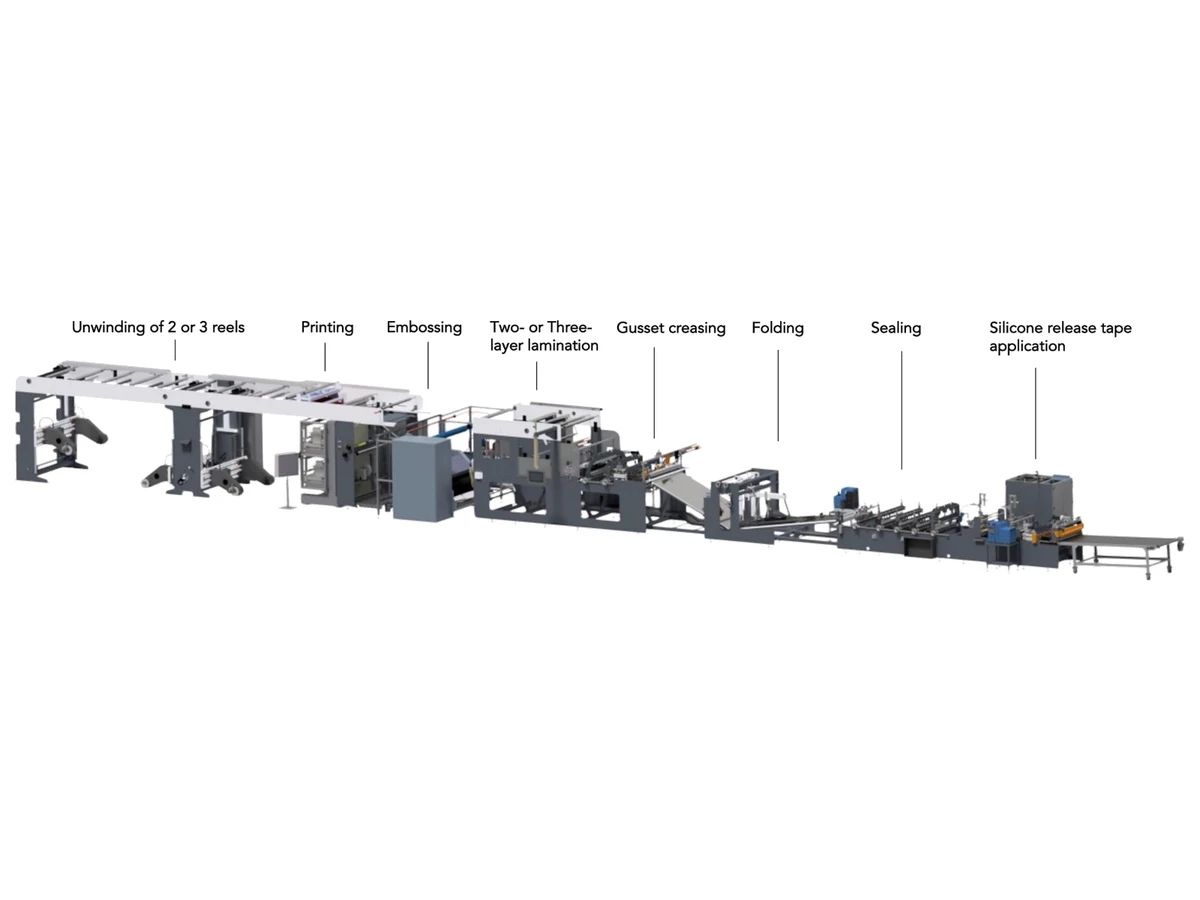

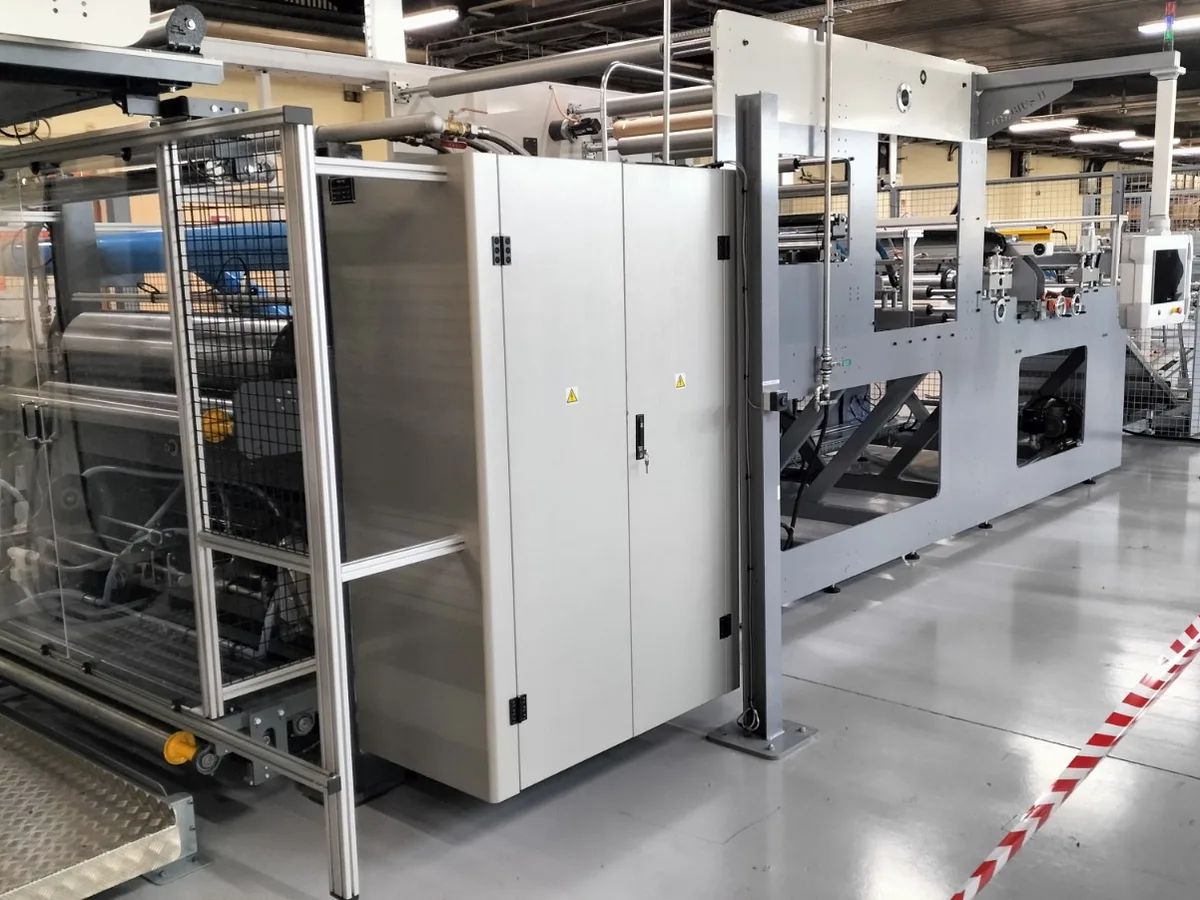

In-line paper mailer line. Unwinds 2 or 3 Kraft reels, then prints, embosses, laminates, creases, folds, seals and applies tear and release tapes in a single pass.
Large-format joining, folding and gluing line for corrugated cases: two board sheets are joined into one, then folded, glued and delivered as finished cases on the outfeed conveyor.
Define products, formats, materials and target output; confirm site power, compressed air and floor space.
ESATEC configures the machine or line to your formats, then assembles and tests it in France.
Delivery, installation, commissioning and operator training on site.
Spare parts, remote technical support and maintenance for the life of the machine.
Chip scoops, clamshells and take-away trays formed from carton board (FB 1000).
Fruit and vegetable trays for growers, packers and retailers (FB 1000).
Paper mailers with tear strip and self-seal closure for online orders (paper mailer line).
Flat and gusseted mailers sized from 100 × 150 mm to 400 × 500 mm (paper mailer line).
Large shipping cases, with optional crash-lock bottoms formed in the same pass (JOINER 500).
Large-format cases for appliances, furniture and bulk goods (JOINER 500).
Reference data from ESATEC's current brochures and technical sheets. Select a machine to jump to its table.
Forms and glues all standard 4-point glued trays; extra tooling adds clamshell and waterproof boxes.
| Output | 12,000 trays/hour per lane |
| Output by lane set-up | 2 flexible lanes: 24,000/hour; 3 fixed lanes: 36,000/hour; 4 fixed lanes: 48,000/hour |
| Products | Chip scoops, clamshell trays, take-away trays (web edges), 4-corner trays, trays with lids, vegetable trays |
| Carton board | 200 to 600 g/m² |
| Corrugated board | E, F and N flute |
| Tray wall angle | 5° to 40° |
| Gluing | Cold-glue stencil system, 2, 4, 6 or 8 glue points per box; glue nozzles optional |
| Feeder | Belt feeder, brushless drive with teach function |
| Changeover | Adjustable forming tower; chain conveyor with pneumatic position locking |
| Controls | Touch panel with saved production parameters, automatic maintenance alerts and remote connection |
| Footprint | 3,300 × 2,000 mm (L × W) |
| Electrical | 400 V, 50 Hz, 10 kVA |
Complete in-line paper mailer process in a single pass: unwind, print, emboss, laminate, crease, fold, seal and tape.
| Output: flat and bottom-gusset bags | Up to 60/min (1 lane); up to 120/min (2 lanes) |
| Output: full-gusset bags | Up to 30/min (1 lane); up to 60/min (2 lanes) |
| Paper | Kraft 80 to 110 g; 2 or 3 layers |
| Web width | 300 to 1,300 mm |
| Unwind | 3-reel unwind stand; reels loaded with the line stopped |
| Process stations | Printing, embossing, 2- or 3-layer lamination, gusset creasing, folding, sealing, release-tape application |
| Bag size: flat / bottom gusset | 100 × 150 mm to 400 × 500 mm |
| Bag size: full gusset | 100 × 150 mm to 250 × 350 mm; gusset 30, 60, 90 or 120 mm |
| Flap / closure | 50 to 100 mm |
| Double stream | Up to 285 mm bag height (flat); up to 250 mm (full gusset) |
| Tear tape | 4 or 6 mm, 1 strip |
| Silicone release tape | 20 mm; 1 or 2 strips (flat), 1 strip (full gusset) |
| Controls | Touch panel with saved production parameters and remote connection |
| Working area | Approx. 32 × 7.7 m, including operator and technical sides |
| Electrical | Up to 70 kVA; 3 × 400 V + N + PE |

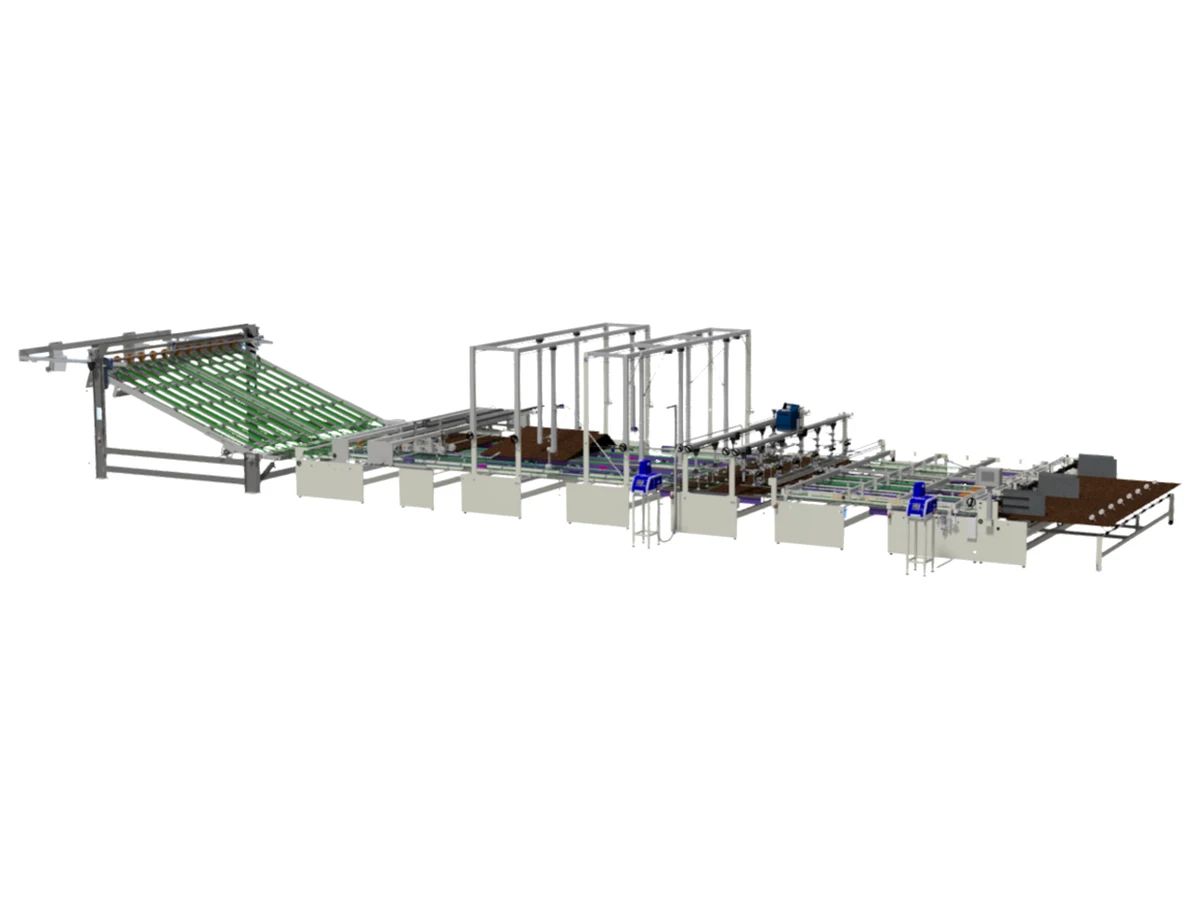

Carton feeder, joiner station and folder-gluer working as one continuous line, from flat board sheets to glued cases on the outfeed conveyor.
| Output | 1,000 boxes/hour (1-up); 2,000 boxes/hour (2-up, sheet length under 1,000 mm) |
| Feeder | Dual carton feeder, two independent servo-driven vacuum streams fed side by side |
| Sheet width (A) | 700 to 2,500 mm per sheet |
| Joined width (D) | 1,400 to 5,000 mm (two sheets joined into one) |
| Sheet length (C) | 500 to 2,000 mm |
| Flap width (B) | 200 mm minimum |
| Registration accuracy | ±1 mm |
| Joining | Central Z-blade, independently phased lugged belts and hot-melt glue |
| Board | Single wall E, B, C, A flute; double wall EB, BC flute |
| Squaring | Four servo-driven finger belts realign each case before pressing |
| Option | Crash-lock bottom station: rotating depth-adjustable hooks and glue guns |
| Controls | Motorised symmetrical width adjustment; touchscreen storing every setting; remote start, stop and step |
| Safety | Full-length light curtains on both sides; CE-compliant |
| Dimensions | 22 × 6 × 2 m (L × W × H) |
| Electrical | 3 × 380 V + N + earth; 20 kVA |
| Compressed air | Oil-free, 2 to 3 m³/h at 5 bar minimum |
Speeds are reference figures from ESATEC and depend on the type, dimensions and quality of the materials used. The Concept confirms configuration, output and utilities in a project proposal.
